Defence Barrier
Home > Products > Defence Barrier > Defense Barrier
Durable Welded Gabion Defensive Barrier Bastion
Introduction

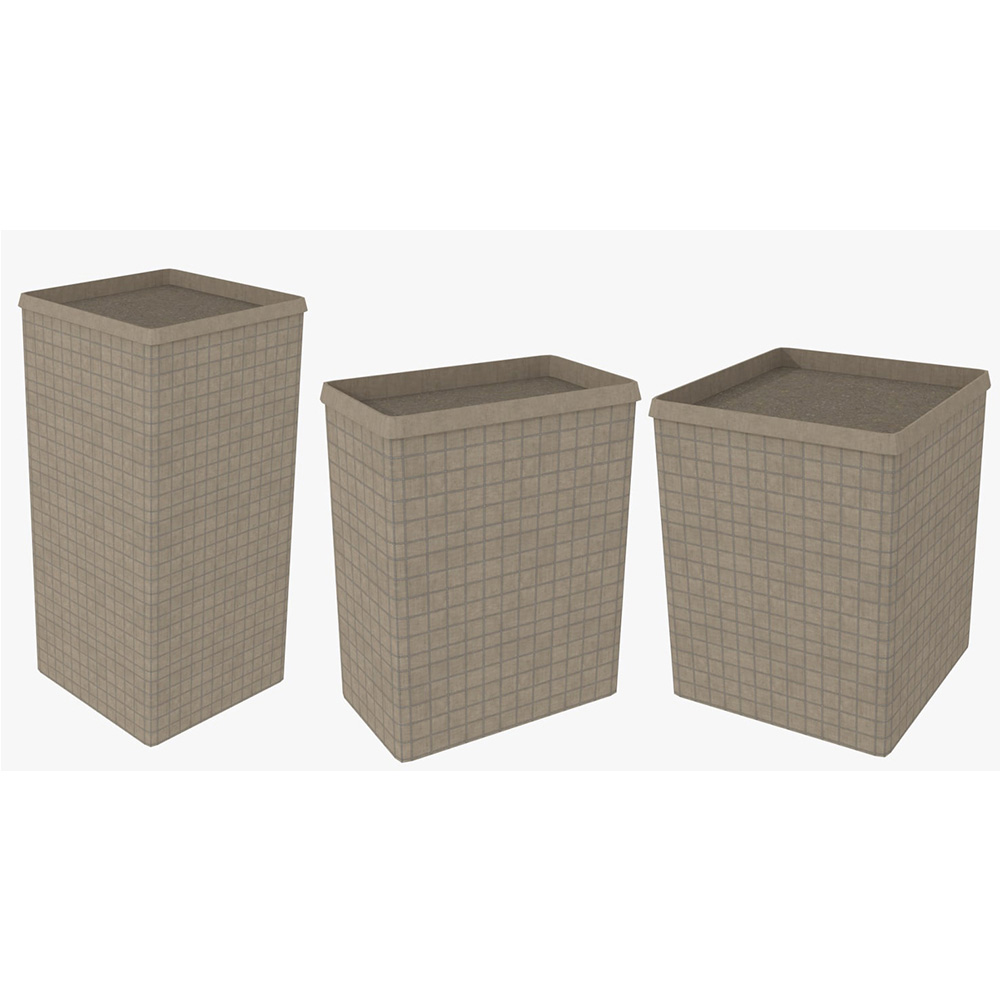

Defence barrier is a modern gabion used for flood control . is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent dike or barrier against blast or small-arms.
The Defensive barriers, is a modern gabion primarily used for flood controlxx It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as blast wall against small-arms fire and/or explosives.It is made of galvanized welded mesh, spring with other fittings, can be filled with sand, earth, cement, stone. Can be used in separate cell or some cells joint together.
Defence Barrier Accessoies
Defensive Clips
barriers cell connector
Defensive spiral wire
Specifications
- Wire diameter: 4-5mm.
- Mesh size: 75x75mm.
- Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customer’s requirement.
- Geotextile: in heavy duty non-woven polypropylene.
- Finish: hot dipped galvanized, galfan coated after welded.
- Packing: wrapped with shrink film or packed in pallet.
| Standard sizes | Height | Width | Length | Cells |
|---|---|---|---|---|
| JS1 | 54''(1.37m) | 42''(1.06m) | 32'9''(10m) | 4+5 cells |
| JS2 | 24''(0.61m) | 24''(0.61m) | 4'(1.22m) | 2 cells |
| JS3 | 39''(1.00m) | 39''(1.00m) | 32'9''(10m) | 5+5 cells |
| JS4 | 39''(1.00m) | 60''(1.52m) | 32'9''(10m) | 5+5 cells |
| JS5 | 24''(0.61m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
| JS6 | 66''(1.68m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
| JS7 | 87''(2.21m) | 84''(2.13m) | 91'(27.74m) | 4+4+5 cells |
| JS8 | 54''(1.37m) | 48''(1.22m) | 32'9''(9.14m) | 4+5 cells |
| JS9 | 39'(1.00m) | 30''(0.76m) | 30'(9.14m) | 6+6 cells |
| JS10 | 87''(2.21m) | 60''(1.52m) | 100'(30.5m) | 5+5+5+5 cells |
| JS11 | 48''(1.22m) | 12''(0.3m) | 4'(1.22m) | 4 cells |
| JS12 | 84''(2.13m) | 42''(1.06m) | 108'(33m) | 5+5+5+5+5+5 cells |
| JS19 | 108''(2.74m) | 42''(1.06m) | 10'5''(3.18m) | 3 cells |
Feature
- Easy to handle and install.
- High tensile and anti-impact capability .
- Long life, regular use .
- Can be filled with sand, earth, cement, stone. .
